SD9367-EHL

NEW!

SD9367-EHL

2MP Outdoor AI PTZ Camera

  • 40x Optical zoom with auto focus and EIS
  • Identify people, vehicle by Vision Object Analytics
  • AI-based Smart Tracking Advanced for moving people
  • WDR Pro for unparalleled visibility
  • Weather-proof IP66 & Vandal-proof IK10/NEMA 4X

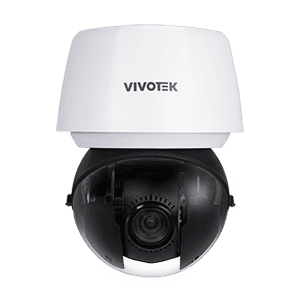

 sd9367 ehl sd9387 ehl



Overview Specification
 Download




From Coverage to Object, AI Tracks What Matters



Benefits

From Coverage to Object, AI Tracks What Matters

Camera Link is a feature that connects a PTZ camera to multiple cameras. Detection cameras provide wide-area coverage to monitor the entire scene, while the PTZ camera focuses on tracking specific targets within that area. When the detection camera detects an event, the PTZ camera instantly locks onto and tracks the target using AI algorithms, which significantly reduces the risk of target loss and improves image clarity of tracked objects. The simplified system architecture is ideal for targeted surveillance areas, minimizing the need for additional manpower.



Stay Alert while Patrolling with AI

Smart Tracking Advanced combines autonomous patrolling with AI detection to deliver continuous full scene coverage. The camera instantly locks onto and tracks abnormal events until they leave the frame, ensuring faster response and enhancing overall security operations.




Exceptional Imaging Performance in Any Distance

This camera is powered by Sony Starvis II sensors, delivering clear imaging and intelligent tracking in any scenario. With 40x optical zoom, it enables users to capture both wide-area overviews and fine details from a distance. It also features WDR Pro, providing sharp, high-quality images that preserve accurate detail even in challenging high-contrast conditions.



Effortless and Flexible Deployment

This camera’s compact, lightweight design makes it easier to install without drawing attention or taking up space. With less power consumption, it runs on standard PoE without requiring additional high-wattage equipment, cutting both hardware and labor costs. Built with industry-grade durability, it delivers reliable performance indoors, semi-outdoors—offering users a flexible and cost-efficient surveillance solution.



From Any Platform to Instant Insight

Easy integrate with any surveillance systems, whether manage cameras on-premises VMS — VAST Security Station(VSS) or on cloud platform—VORTEX, both provide a consistent user experience, including intuitive AI-powered search features and case management, users can quickly locate, consolidate, and manage footagea. This reduces manpower and maintenance costs, and enables faster, more effective responses to incidents across any deployment scenario.

 Complete Video Security with VIVOTEK Solution





Deep Search: AI-Driven Solution

While AI adoption has presented challenges in installation and configuration for many, VIVOTEK Deep Search revolutionizes the process, simplifying user judgment through automated investigation.


 deep search result





Specifications

Technical Specifications

Model SD9367-EHL
CPU Multimedia SoC (System-on-Chip)
Flash 8 GB
RAM 2 GB
Camera Feature
Image Sensor 1/2.8″ Progressive CMOS
Max. Resolution 1920×1080 (2MP)
Lens Type 40x Optical Zoom, Auto Focus
Focal Length 4.25~170mm (40x zoom)
Aperture F1.6~4.95
Iris Type DC-Iris
Field of View 65.7° ~ 1.9° (Horizontal)
39.4° ~ 1.1° (Vertical)
73.0° ~2.1° (Diagonal)
Shutter Time 1 sec. to 1/100,000 sec.
WDR Technology WDR Pro
Day/Night Yes
Removable IR-cut Filter Yes
Minimum Illumination 0.05 lux @ F1.6 (Color)(30IRE)
<0.005 lux lux @ F1.6 (B/W)(30IRE)
Pan Speed 0.05° ~ 450°/sec
Pan Range 360° endless
Tilt Speed 0.05° ~ 450°/sec
Tilt Range -20° ~ +90°
Effective tilt coverage 220° via auto flip
Preset Location 256 preset locations
128 presets per tour
Pan/Tilt/Zoom Functionalities 8x digital zoom
Auto Pan mode
Auto Patrol mode
Mechanical Auto flip
Storage Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids Remote focus, remote zoom
Video
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate 30 fps @ 1920×1080 (WDR on)
60 fps @ 1920×1080 (WDR off)
Maximum Streams 3 video streams (Up to 8 configurable profiles)
S/N Ratio 60 dB
Dynamic Range 120 dB
Video Streaming Adjustable resolution, quality and constrained bit rate control, Smart Stream III
Image Settings

General settings

video title and time stamp overlay, video orientation (flip, mirror), day/night settings

Image settings

white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, HLM, 3DNR, EIS, scene mode (auto, deblur)

Exposure

BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR

Focus

Privacy mask

Scheduled profile settings

Pixel calculator
Audo
Audio Capability Two-way audio (Full duplex)
Audio Compression

MPEG-2 AAC-LC, G.711, G.726
Audio Interface External line input
External line output
Network
Users Live viewing for up to 10 clients
Security Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, Dos Protection, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management
Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF Profile G, S, T, M supported, specification available at www.onvif.org
AI Analytics
Compute Capability

SoC with built-in hardware deep learning accelerator
Vision Object Analytics

Object Detection

People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction

Attribute Extraction

People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)

Human face Bestshot, Re-Search Extraction
Application

Deep Learning VCA (Smart Tracking Advanced)

Smart VCA – Group 1

Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)

Smart VCA – Group 2

Unattended object detection, Missing object detection
Application available with license

Smart VCA – Group 3

Parking Violation Detection, Restricted Zone Detection

*Support for more analytic applications and free trial,please visit VIVOTEK website.
RealSight Engine Smart IR III, Deblur, WDR, White Balance, Exposure Control
Solution Integration
VADP Package

Trend Micro IoT Security (3-year free trial), Event action through Http/Https
Alarm and Event
Event Trigger Audio detection*, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input*, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, smart tracking advanced trigger, system boot, preset reached
*Requires AO-008 cable
Event Action Event notification via audio clip*, camera link, digital output*, email, HTTP, FTP/SFTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
*Requires AO-008 cable
General
Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection
Audio line input*
Audio line output*
DC 48V power input
AC 24V power input
Digital input*2*
Digital output*1*
RS-485*1*
* Requires AO-008 cable
LED Indicator System power and status indicator
Power Input AC 24V*, DC48V*, IEEE 802.3 at PoE class 4
(Simultaneous Power Redundancy Supported)
* Requires AO-008 cable
Power Consumption PoE
Max: 22.5W/25.5W (Heater & Fan on/off)
DC 48V
Max: 22.5W/25.5W (Heater & Fan on/off)
AC 24V
Max: 22.5W/25.5W (Heater & Fan on/off)
Dimensions Ø174x 276 mm
Weight 4.5 kg
Certifications

EMC

CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +A11: 2020 , BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)

Safety

UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)

Environment

IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X)

IA

BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Operating Temperature Starting Temperature:
-40°C ~ 55°C (-40°F ~ 131°F)
Working Temperature:
-40°C ~ 55°C (-40°F ~ 131°F)
Humidity 98% RH (non-condensing)
System Requirements
Operating System Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser Chrome 58.0 or above Internet Explorer 10/11
Other Players VLC: 1.1.11 or above
Included Accessories
Packing Contents T10 and T25 L-wrench, Waterproof round cap, Quick installation guide, Terminal blocks (for DI/DO audio, AC/DC/GND wires, RS485), Ground wire.
DORI (EN 62676-4 Standard)
Detect (25PPM/ 8PPF) Wide: 61.1 m (200.4 ft)
Tele: 2370 m (7778.3 ft)
Observe (63PPM/ 19PPF) Wide: 24.4 m (80 ft)
Tele: 854.15 m (2802.1 ft)
Recognize (125PPM/ 38PPF) Wide: 12.2 m (40 ft)
Tele: 414.2m (1358.9 ft)
Identify (250PPM/ 76PPF) Wide: 6.1 m (20 ft)
Tele: 208.3 m (683.5 ft)
