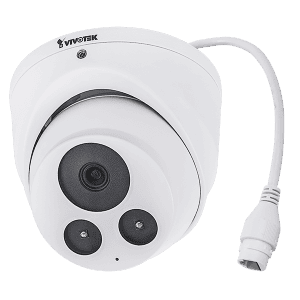

IT9360-H (2.8 mm)2MP Outdoor Turret Network Camera
|
 |
Specifications
|
System Information |
|
| Model | IT9360-H (2.8 mm) |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
|
Camera Features |
|
| Image Sensor | 1/2.9″ Progressive CMOS |
| Max. Resolution | 1920×1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Auto-iris | Fixed Iris |
| Field of View | 109° (Horizontal) 59° (Vertical) 129° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.065 lux @ F2.0 (Color) <0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on |
| Pan Range | >360° |
| Tilt Range | 70° |
| Rotation Range | 360° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
|
Video |
|
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920×1080 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 68 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings |
General settings video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators illuminators, anti-overexposure Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR Exposure BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR Privacy mask Scheduled profile settings |
| Audio | |
| Audio Capability | One-way Audio |
| Compression |
G.711, G.726 |
| Audio Interface | Built-in microphone |
| ffective Range | 5 meters |
|
Network |
|
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF |
Profile G, S, T supported, specification available at www.onvif.org |
| Solution Integration | |
| Video Motion Detection | Motion Detection (Five-window video motion detection) |
|
Alarm and Event |
|
| Event Triggers | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot |
| Events Action |
Event notification via email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card |
|
General |
|
| Connectors |
RJ-45 cable connector for 10/100 Mbps Network/PoE connection |
| LED Indicator | – * Hidden system power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 6 W/3.31 W (IR on/off) |
| Dimensions | ø 105 x 82.5 mm |
| Weight | 475 g |
| Safety Certifications |
EMC CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B) Safety UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment IK10 (IEC 62262), IP66 (IEC 60529) IA BIS (IS 13252) * IK10(Metal Housing) |
| Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F) |
| Humidity | 90% |
|
System Requirements |
|
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
|
Included Accessories |
|
| Packing Contents |
Quick installation guide, alignment sticker, screw pack, cable gland |
