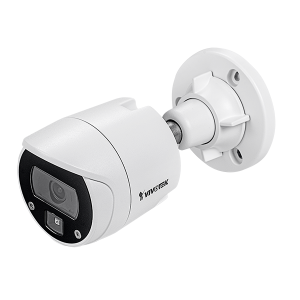

IB9369 (3.6 mm)2MP Outdoor Bullet Network Camera
|
 |
| Specifications |
Downloads |
Specifications
|
System Information |
|
| Model | IB9369 (3.6 mm) |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 256 MB |
|
Camera Features |
|
| Image Sensor | 1/3.1″ Progressive CMOS |
| Max. Resolution | 1920×1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 3.6 mm |
| Aperture | F2.0 |
|
Iris Type
|
Fixed Iris |
| Field of View | 90.0° (Horizontal) 49.0° (Vertical) 106.0° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators |
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1 |
| Minimum Illumination | 0.1 lux @ F2.2 (Color) <0.005 lux @ F2.2 (B/W) 0 lux with IR illumination on |
| Tilt Range | 90° |
| Rotation Range | 180° |
|
Pan/Tilt/Zoom Functionalities
|
ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (128GB capacity supported) and recording to network-attached storage (NAS) |
|
Video |
|
|
Compression
|
H.265, H.264, MJPEG |
|
Maximum Frame Rate
|
30 fps @ 1920×1080 |
|
Maximum Streams
|
2 video streams (Up to 7 configurable profiles) |
|
S/N Ratio
|
59 dB |
|
Dynamic Range
|
WDR Support |
|
Video Streaming
|
Adjustable resolution, quality and constant bit rate control, Smart Stream III |
|
Image Settings
|
General settings video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators illuminators, anti-overexposure Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR Exposure BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR Privacy mask Pixel calculator Scheduled profile settings |
|
Network |
|
| Users | Live viewing for up to 10 clients |
| Security | Access list, Password protection, Digest authentication, HTTPS, IEEE 802.1x, Signed firmware, User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10BASE-T/100BASE-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Vision Object Analytics |
Path Extraction |
| Applications | Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter) |
| Solution Integration | |
|
Video Motion Detection
|
Motion Detection (Five-window video motion detection) |
| Alarm and Event | |
| Event Trigger | Motion detection, Camera tampering detection, Manual trigger, Periodical trigger, System boot, Recording notification, SD card life expectancy |
|
Event Action
|
Event notification via email, HTTP, FTP/SFTP, NAS server, SD card, push notification File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
|
General |
|
| Connectors | RJ-45 cable connector for 10/100 Mbps Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af Class 0 PoE, DC 12V (Simultaneous Power Redundancy Supported) |
| Power Consumption | PoE: Max. 6W/4W (IR on/off) DC 12V: Max. 5.1W/3.4W (IR on/off) |
| Dimensions | 91.1 (D) x 181.5 (H) mm |
| Weight |
671 g |
| Safety Certifications |
EMC |
| Operating Temperature | Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off) -30°C ~ 50°C (-22°F ~ 122°F) (IR on) |
| Humidity |
95% RH (non-condensing) |
| Warranty |
36 months |
| System Requirements | |
| Operating System |
Microsoft Windows 10/8/7 |
| Web Browser |
Chrome 58.0 or above |
| Other Players |
VLC: 1.1.11 or above |
|
Included Accessories |
|
| Packing Contents |
Quick installation guide, alignment sticker, screw pack, cable gland |
