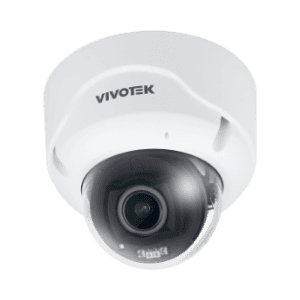

FD939-EHTV8MP Outdoor Dome Camera
|
 |
| Overview | Specifications |
Downloads |
Benefits
Monitor Anywhere, Anytime, Any Device
VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.
AI Analytics for Comprehensive Surveillance
VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.

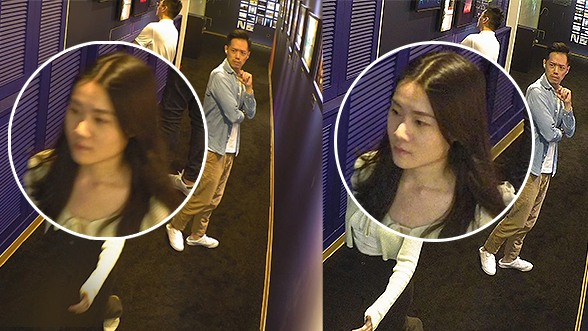

Capture with Incredible Clarity
RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed.
Excel in harsh environments
Premium Dome & Bullet AI Cameras support IK10 impact resistance and IP67 weatherproofing, ensuring durability in harsh conditions.
Peace of Mind with Up to 10-Year Warranty
VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 10-year warranties and continuous license subscriptions for significant cost savings per camera.
AI Hub: From Detection to Data-Driven Insights
Specifications
|
System Information |
|
| Model | FD939-EHTV |
|
Camera Features |
|
| Image Sensor | 1/1.8″ Progressive CMOS |
| Max. Resolution | SD: 1280×720 HD: 3840×2160 |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 4.3 ~ 9.8 mm |
| Aperture | F1.6 ~ F2.6 |
| Auto-iris | P-iris |
| Field of View | 110.4° ~ 45.1° (Horizontal) 57.9° ~ 25.4° (Vertical) 133.9° ~ 51.8° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators |
Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4 |
| Minimum Illumination | 0.02 lux @ F1.6 (Color) <0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | 80° |
| Rotation Range | 350° |
| Storage | MicroSD/SDHC/SDXC card slot (Built-in 512GB industrial SDCard) |
|
Video |
|
| Video stream settings | HD Video 3840 x 2160 (8MP) @15fps 3Mbps upload SD Video 1280 x 720@15fps 300Kbps upload |
| Audio | |
| Audio Capability | Two-way Audio (full duplex)* * Requires AO-015 cable (xPro License required to enable speaker talk-down feature) |
| Audio Interface | Built-in microphone External microphone input* External line output* * Requires AO-015 cable. |
| Effective Range | 5 meters |
|
Network |
|
| Users | Up to 6 clients *Live viewing for 6 clients *live viewing up to 4 clients and playback 2 clients |
| Security |
Secure boot, Signed firmware, HTTPS/TLS encryption, Video encryption |
| Protocols | ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP, WebRTC |
| Interface | 10BASE-T/100BASE-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
|
General |
|
| Connectors | RJ-45 cable connector for 10/100 Mbps Network/PoE connection Audio line input* Audio line output* Digital input: 1* Digital output: 1* * Requires AO-015 cable |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4W/9.6W (IR on/off) |
| Dimensions |
134 (D) x 116 (H) mm |
| Weight | 990 g |
| Safety Certifications |
EMC |
| Operating Temperature | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) Working Temperature: -35°C ~ 60°C (-31°F ~ 140°F) (IR off) -35°C ~ 50°C (-31°F ~ 122°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Warranty |
Up to 120 months (Depends on license type) |
|
Included Accessories |
|
| Packing Contents |
Quick installation guide, alignment sticker, L-shaped wrench, screw pack |
|
VORTEX AI Analytics |
|
| Application | Intrusion detection Line crossing detection Loitering detection Unattended object detection Missing object detection |
| Audio detection | Yes |
| Camera tampering detection | Yes |
| AI Hub (xPro license required) | Attribute search Scene search Re-search Profile search LPR search Think search Event insight Facial recognition |
| Advanced AI (Advanced AI license required) | Personal protective equipment License plate recognition Fall detection Think alert |
