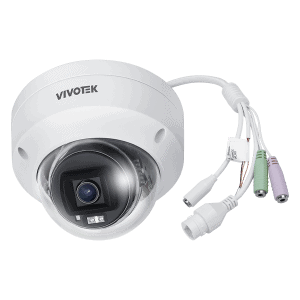

FD830-HV5MP Outdoor Dome AI Camera
|
 |
| Overview | Specifications |
Downloads |
Benefits
Clear vision in high-contrast conditions
Powered by WDR Pro, the camera delivers sharp, high-quality images, ensuring accurate detail capture in difficult high-contrast conditions for comprehensive surveillance.
Metal housing with IK10 certification
AI Analytics for Comprehensive Surveillance
VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.

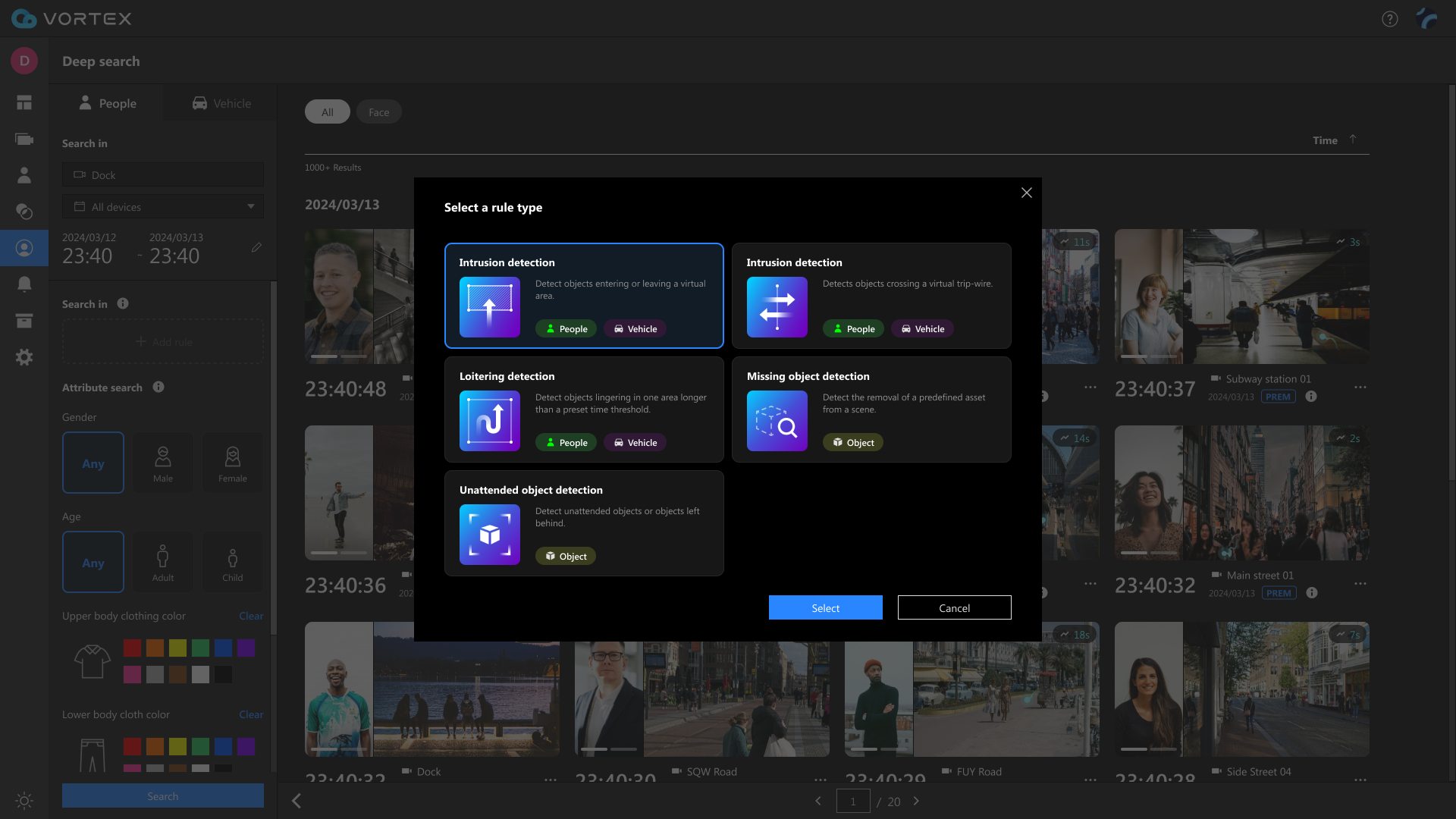

Streamline Your Surveillance with Deep Search
Quickly review camera footage with the Scene Search feature from Deep Search tab page. Use intrusion, line crossing, or loitering detection to enhance efficiency. Draw a line at any point of interest and select a timeframe to find all events where a person or vehicle crossed that line. This allows users to identify and respond to security incidents swiftly.
Monitor Anywhere, Anytime, Any Device
VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.

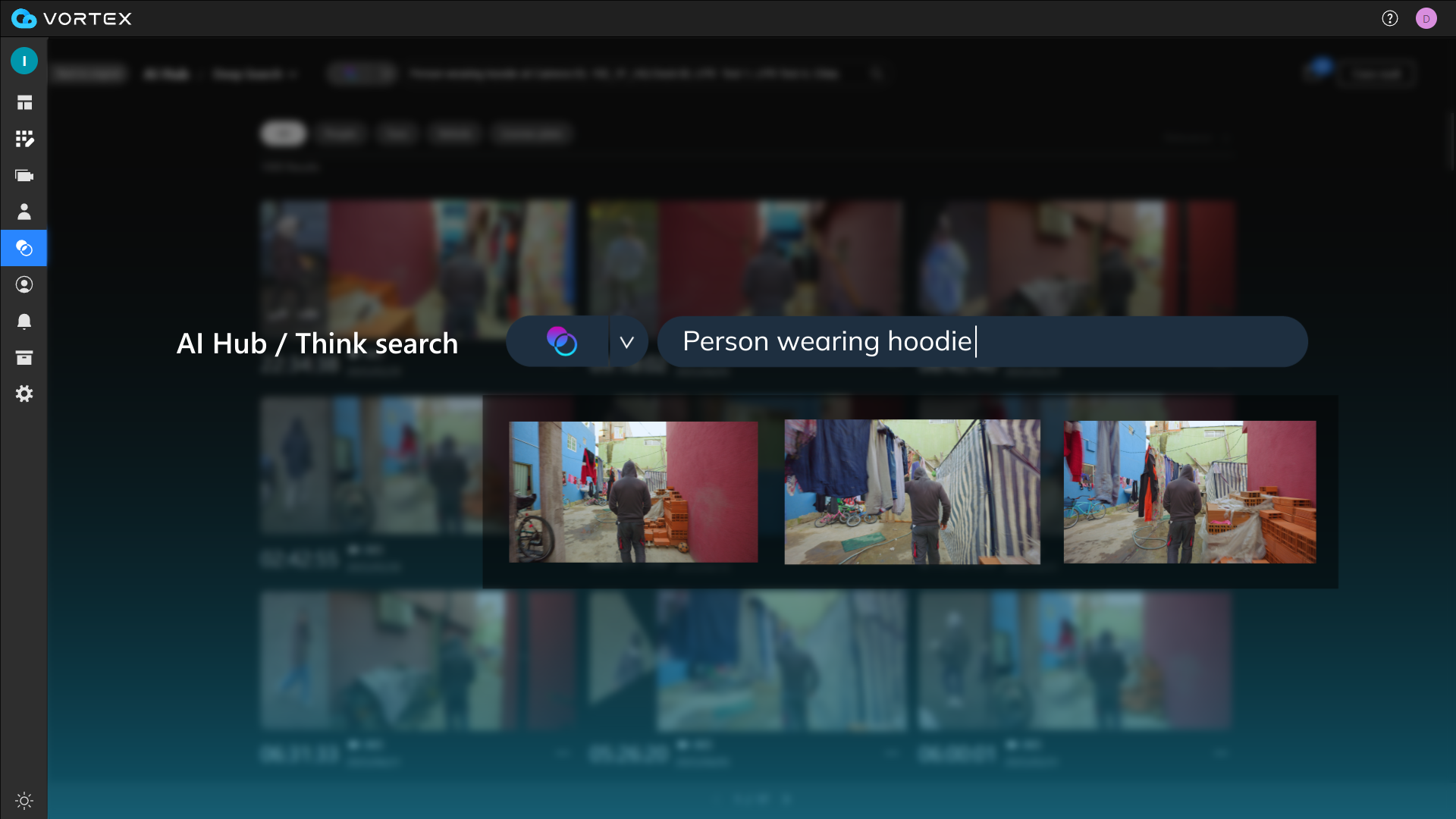

AI Hub: From Detection to Data-Driven Insights
Specifications
|
System Information |
|
| Model | FD830-HV |
|
Camera Features |
|
| Image Sensor | 1/2.7″ Progressive CMOS |
| Max. Resolution | SD: 1280×960 HD: 2880×1616 |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F1.6 |
| Auto-iris | Fixed iris |
| Field of View | 111.0° (Horizontal) 59.0° (Vertical) 133.0° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators |
Built-in IR Illuminator up to 30 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.055 lux @ F1.6 (Color) 0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | 75° |
| Rotation Range | 350° |
| Storage | MicroSD/SDHC/SDXC card slot (Built-in 256GB industrial SDCard) |
|
Video |
|
| Video stream settings | HD Video 2880 x 1616@15fps 1.2Mbps upload SD Video 1280 x 960@15fps 300Kbps upload |
| Audio | |
| Audio Capability | Two-way Audio |
| Audio Interface | External line input External line output |
|
Network |
|
| Users | Up to 4 clients *Live viewing for 4 clients *live viewing up to 2 clients and playback 2 clients |
| Security | Signed firmware, HTTPS/TLS encryption, Video encryption |
| Protocols | ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP, WebRTC |
| Interface | 10BASE-T/100BASE-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
|
General |
|
| Connectors | RJ-45 cable connector for 10/100 Mbps PoE network connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 3 DC 12V |
| Power Consumption | DC 12V: Max. 6.24W PoE: Max. 6.38W, typical 3.6 W |
| Dimensions |
117.2 (D) x 89.6 (H) mm |
| Weight | 562 g |
| Safety Certifications |
MC |
| Operating Temperature | Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 90% RH (non-condensing) |
| Warranty |
Up to 120 months (Depends on license type) |
|
Included Accessories |
|
| Packing Contents |
Quick installation guide, alignment sticker, screw pack, cable gland |
|
VORTEX AI Analytics |
|
| Application | Intrusion detection Line crossing detection Loitering detection |
| Audio detection | Yes |
| Camera tampering detection | Yes |
| AI Hub (xPro license required) | Scene search Think search Event insight |
